APB – Insertable Pleated Bag Pulse Jet Filter
$0.00
The Airtight Solutions insertable pulse jet cleaning baghouse is compact size is easily installed on or into a storage bin or silo roof. We also offer the insertable filter range with a vertical up stand option available to lift filters above silo material level. These can also include fan support brackets. Optional Vent-fans and silencers can be added to deliver a complete solution to suit your requirements.
The length and number of filter bags is determined by airflow and dust loading requirements.
- Description
- Technical Specifications
Description
High-Performance Insertable Dust Collection for Industrial Applications
The APB Insertable Pleated Bag Pulse Jet Filter is a compact, high-efficiency dust collection solution designed to deliver reliable filtration across a wide range of industrial processes. Engineered for continuous operation, the APB combines advanced pleated bag technology with online pulse jet cleaning to maximise filtration performance while minimising maintenance and downtime.

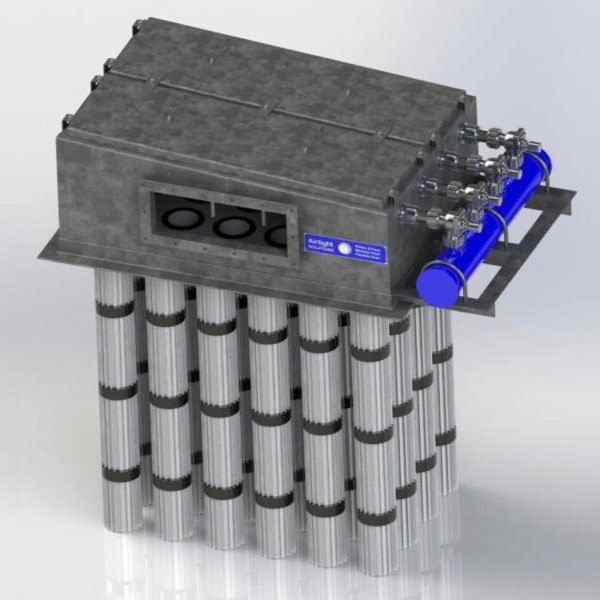

Its insertable design makes the APB ideal for integrating into new or existing plant equipment where space is limited, while delivering high airflow capacity and outstanding dust removal efficiency. The self-supporting pleated filter bags eliminate the need for internal support cages, simplifying maintenance and reducing replacement costs.
Suitable for a variety of dry dust applications, the APB provides consistent performance in demanding industrial environments including manufacturing, mining, timber processing, food production, recycling, and material handling.
Key Features
- Delivers airflow capacities of up to 11,600 m³/hr.
- Available with 16, 20 or 24 self-supporting pleated filter bags.
- Self-supporting filter bags require no internal cages, reducing maintenance and simplifying filter replacement.

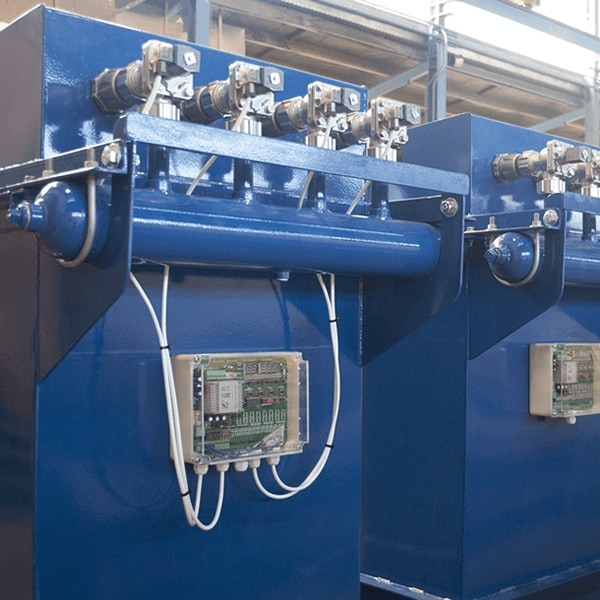

- Online pulse jet cleaning maintains peak filtration performance without interrupting production.
- Available in four filter lengths to suit a wide range of applications.
- Manufactured in painted steel, galvanised steel or stainless steel to suit operating environments.
- Suitable for operating temperatures of up to 110°C.
- Compact insertable design for easy integration into existing or new dust extraction systems.
Optional Features
Customise the APB Filter to suit your process and operating conditions with a range of optional enhancements, including:
- High-temperature filter media
- Specialised filter media for demanding dust applications
- Four filter lengths
- Automatic differential pressure sensor for fully automated pulse cleaning
- Exhaust fan selection sized to your airflow requirements
Reliable, Low-Maintenance Dust Filtration
The APB Insertable Pleated Bag Pulse Jet Filter is designed to maximise dust collection efficiency while reducing operating costs. Its advanced pulse jet cleaning system keeps filters operating at peak performance during production, extending filter life, lowering compressed air consumption, and reducing maintenance requirements.
Whether installed as part of a new dust extraction system or integrated into existing equipment, the APB delivers dependable, energy-efficient performance for demanding industrial environments.
Contact the Airtight Solutions team today to discuss your application, arrange a free onsite assessment, or request a tailored dust collection solution.
Technical Specifications
- Maximum Airflow: Up to 11,600 m³/hr
- Filter Configuration: 16, 20 or 24 pleated filter bags
- Filter Design: Self-supporting pleated bags with no internal cages
- Operating Temperature: Up to 110°C
- Compressed Air Supply: Clean, dry compressed air at 6 bar(g)
- Compressed Air Consumption: Approximately 2 Nm³/hr per 10 m² of filter area
- Pulse Controller: IP66 rated, 230V, 10W power supply
- Cleaning Controls: Adjustable pulse duration and cleaning interval
