Description

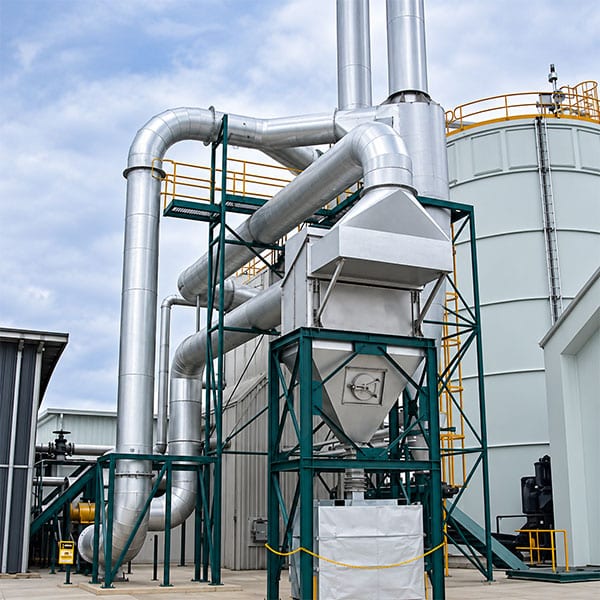

Multi Cyclone Dust Collectors

Airtight Multi Cyclone Dust Collectors are designed for industrial applications requiring robust separation of dust and particulate from high-volume air streams.

Rather than relying on a single cyclone, a multi-cyclone system uses multiple smaller cyclone elements operating in parallel. This allows large volumes of process air to be handled while maintaining effective centrifugal separation of particulate from the air stream.

How Does a Multi Cyclone Dust Collector Work?

A multi cyclone dust collector separates particulate using centrifugal force.

Dust-laden air enters the cyclone elements and is forced into a rotating flow. Heavier particles are driven towards the outer walls and separated from the air stream before falling into the collection section below.

The cleaned air then exits the cyclone while the separated material can be collected or transferred for further handling.

Because separation is achieved mechanically, cyclone systems can provide a robust solution for demanding industrial dust applications.

Designed for High-Volume Dust Separation

Multi-cyclones are particularly useful where industrial processes generate significant volumes of dust or particulate.

Using multiple cyclone elements allows the system to handle larger air volumes while maintaining a compact and robust separation arrangement.

Depending on the application, a multi cyclone can operate as the primary dust collection equipment or as a pre-separator ahead of another dust collector, reducing the amount of material reaching downstream filtration equipment.

Protect Downstream Dust Collection Equipment

Where an air stream contains a high concentration of coarse or heavy particulate, sending all of that material directly to a filter can increase the load on the dust collector.

Installing a cyclone upstream can remove a portion of this material before the air reaches the final filtration stage.

This can make multi-cyclones useful within larger dust extraction systems where bulk material separation and final filtration are handled in separate stages.

Engineered Around Your Process

The performance of an industrial cyclone depends on factors including airflow, particle characteristics, dust loading and the wider process.

Airtight Solutions can design the multi cyclone dust collector and associated ducting, industrial fans and downstream filtration equipment around the requirements of the application.

Multi-cyclones can be incorporated into new dust extraction systems or considered when upgrading existing industrial air pollution control equipment.

Handling high volumes of dust or particulate? Talk to Airtight Solutions about the right cyclone, filtration and dust extraction system for your process.
