Airtight EZ Shred 13 Shredder
$0.00
The EZ Shred 13 Industrial Timber Shredder is designed for demanding wood waste applications requiring a larger hopper and heavy-duty cutting system. With a 1.5 m³ hopper, 30–45 kW motor and 1300 mm rotor, it can process larger wood blocks and production waste for easier handling, recycling or downstream processing.
- Description
- Specifications
- Applications
- Features & Benefits
Description

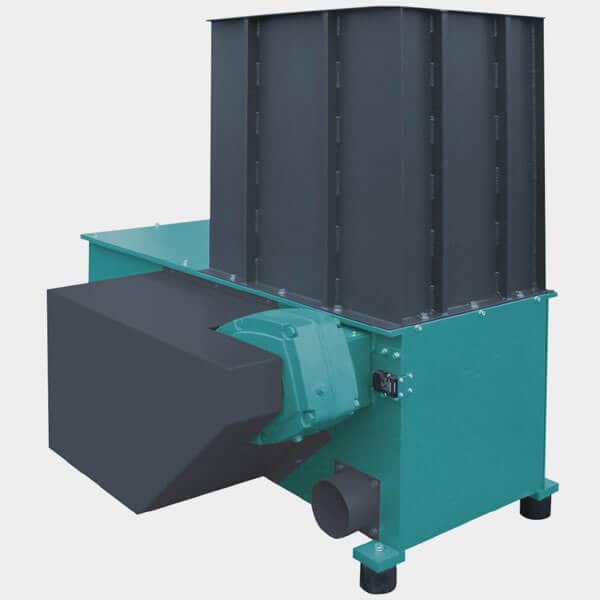

EZ Shred 13 Industrial Timber Shredder
The EZ Shred 13 Industrial Timber Shredder is designed for demanding wood processing operations generating larger wood blocks, offcuts and production waste.
Its heavy-duty configuration combines a 1.5 m³ hopper with a 368 mm diameter, 1300 mm long rotor and 30–45 kW motor. This makes the EZ Shred 13 particularly suited to industrial operations requiring a larger and more powerful shredding system than the smaller EZ Series models.
Built for Larger Wood Waste
The EZ Shred 13 is designed to process larger wood waste and production offcuts into smaller, more manageable material.
A large 1300 × 1200 mm hopper opening provides space for feeding bulky material, while the 1300 mm rotor uses 30 × 30 mm concave headed cutters to process material through the shredder.
Reducing bulky timber waste can make the material easier to store, transport and manage while also preparing it for suitable downstream recycling or recovery processes.
Control the Final Material Size
Interchangeable screens allow the shredded output to be adapted to different applications and downstream processes.
Common configurations include:
- 10/12 mm – commonly used when preparing material for briquetting
- 16/20 mm – commonly used for chipboard and MDF
- 20/25 mm – commonly used for pine offcuts
- Other screen sizes are available depending on the required throughput and final material size.
Actual throughput will vary depending on the material composition and screen size selected.
Industrial Shredding Control
The EZ Shred 13 uses electronic PLC control, with controls housed within an IP44 control cabinet.
Rotor speed is 60–100 rpm, providing controlled processing through the cutting system. With a machine weight of approximately 3200 kg and motor options from 30–45 kW, the EZ Shred 13 is designed for demanding industrial timber waste applications.
Part of a Complete Wood Waste System
Airtight Solutions can incorporate the EZ Shred 13 into a broader wood waste management system, including material handling, dust extraction and briquetting equipment.
The appropriate shredder, screen size and system configuration will depend on the type and volume of wood waste being processed and what needs to happen to the material after shredding.
Which Shredder Is Right for You?
Choosing the right wood waste shredder depends on the type, size and volume of material you need to process. The EZ Shred range offers different hopper sizes, motor capacities and throughput rates to suit varying wood waste requirements. Compare the models below to find the best fit for your operation.
| Model | Motor | Feed / Hopper Opening | Throughput | Best Suited To |
| EZ Shred 6 | 18.5 kW | 600 × 800 mm | Approx. 1–2 m³/hr | Lower-volume loose wood offcuts |
| EZ Shred 8 | 18.5 kW | 800 × 1000 mm | Approx. 2–4 m³/hr | Medium-volume loose wood offcuts |
| EZ Shred 10 | 22 kW | 1000 × 1200 mm | Approx. 4–5 m³/hr | Higher-volume loose wood offcuts |
| EZ Shred 13 | 30–45 kW | 1300 × 1200 mm | Approx. 2.5–4 m³/hr* | Larger wood blocks and heavy-duty processing |
Processing larger timber offcuts or looking for a more heavy-duty wood waste system? Talk to Airtight Solutions about your material, waste volumes and required output and we’ll help determine the right shredder and system configuration for your operation.
| Type | EZ 13 |
|---|---|
| Throughput (approx for 16/20 screen) |
2.5-4 m3/hr of loose wood blocks |
| Hopper opening: | 1300 x 1200 mm |
| Hopper volume: | 1.5 m3 |
| Rotor Diameter: | 368mm |
| Rotor Length: | 1300 mm |
| Rotor Speed: | 60 – 100 rpm |
| Connection: | 250 mm |
| Dimensions (m): | 2.4L x 1.7W x 1.7H |
| Weight: | 3200 kg |
| Power Motor: | 30 – 45 kW |
| Cutting System: | 30 x 30 mm Concave headed cutters |
| Screen Size(mm): | 16/20 mm common for chipboard/mdf. 20/25mm common for pine off cuts. 10/12 mm common for briquetting . Various sizes available depend on throughput required. |
| Throughput | The throughput rate depends on material composition & screen size |
| Control: | Electronic control using a PLC. All controls housed in an IP44 control cabinet |
| Voltage: | 400 V +/- 5% / 50 Hz |
Applications
- Industrial timber processing
- Joineries and cabinet manufacturing
- Furniture manufacturing
- Larger wood blocks and timber offcuts
- Pine offcuts
- Chipboard and MDF waste
- Wood production waste
- Timber waste volume reduction
- Wood waste recycling and resource recovery
- Preparation of wood waste for briquetting
- High-demand industrial woodworking operations
Features & Benefits

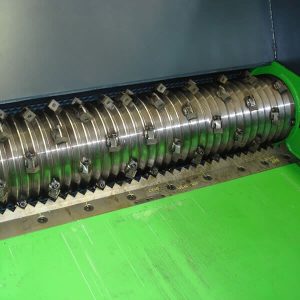

Heavy-duty 1300 mm rotor
Large 368 mm diameter × 1300 mm long rotor designed for demanding industrial wood waste applications.
1.5 m³ hopper
Large 1300 × 1200 mm hopper opening accommodates bulky timber waste and larger wood blocks.
30–45 kW motor options
Multiple motor configurations allow the shredder to be specified around the application and processing requirements.
Concave headed cutters
Uses 30 × 30 mm concave headed cutters for industrial wood waste processing.
Interchangeable screen sizes
A range of screen sizes allows the final shredded material size to be selected around the material and downstream process.
Suitable for downstream briquetting
A 10/12 mm screen is commonly used when preparing suitable wood waste for briquetting.
PLC control
Electronic PLC control with controls housed within an IP44 control cabinet.
Australian installation and aftercare support
Airtight Solutions provides installation and ongoing aftercare support for industrial waste reduction equipment.
