BPB Series – Conveyor Vent filters
$0.00
The Airtight Solutions BPB Conveyor vent filter is a small online cleaning filter specifically designed for transfer points on conveyors. Engineered to capture dust and fine particulates at critical material transfer locations, the BPB Series Conveyor Vent Filters help reduce airborne dust, improve plant air quality and minimise housekeeping. Built for durability and easy maintenance, these filters are ideal for manufacturing, processing and material handling operations where efficient dust control at conveyor discharge points is essential.
- Description
- Specifications
- Applications
- Features & Benefits
Description

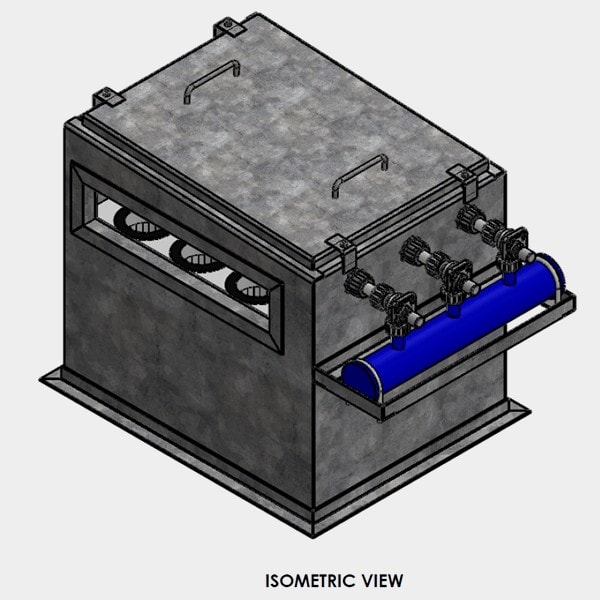

BPB Conveyor Vent Filter
Compact Dust Control for Conveyor Transfer Points
The BPB Conveyor Vent Filter provides localised dust filtration for conveyor systems and material transfer points where dust can become airborne during handling.
Installed close to the dust source, the BPB Series provides a compact approach to conveyor dust control without requiring unnecessarily large extraction equipment for smaller, localised applications.
The range can be configured around the airflow and filtration requirements of the application, with multiple filter sizes and matching fan options available.
Configurable to Suit Your Application
The BPB Series is available with 4, 6, 8, 9 or 12 filter bags, providing filter areas from 3.84 m² to 11.5 m².
Nominal airflow ranges from 240–480 m³/h for the four-bag configuration through to 730–1,450 m³/h for the largest 12-bag configuration. BPB Conveyor Vent Filters
This allows the conveyor vent filter to be selected around the dust load, required airflow and material handling application rather than relying on a single standard configuration.
Integrated Fan Options
A range of BPBF fans is available to suit the different filter configurations, with motor sizes from 0.37 kW to 2.2 kW and maximum flow rates from 480 to 1,450 m³/h. BPB Conveyor Vent Filters
The appropriate filter and fan combination should be selected according to the conveyor arrangement, material being handled, dust characteristics and required airflow.
Conveyor Dust Control Designed Around Your Site
Effective conveyor dust control depends on more than simply installing a filter. The location of dust generation, enclosure, material characteristics and airflow all influence the performance of the system.
Airtight Solutions can assess your conveyor or transfer point and specify the appropriate dust collection and ventilation equipment as part of a wider dust extraction system where required.
Need to control dust around a conveyor or transfer point? Contact Airtight Solutions about the right filtration, extraction and system design for your application.
Technical Specifications
Fan size range: 0.37kW to 2.2kW
Airflow range: 240m3/hr – 1450m3/hr
| MODEL | POWER (kW) | MAX. FLOW RATE (m³/h) |
|---|---|---|
| BPBF 280 | 0.37 | 480 |
| BPBF 355 | 0.75 | 720 |
| BPBF 400 | 1.1 | 1090 |
| BPBF 450 | 2.2 | 1450 |
Filter Options
| NO. OF BAGS | A (mm) | B (mm) | FILTER AREA (m²) |
NOMINAL AIR FLOW (m³/h) |
|---|---|---|---|---|
| 4 | 555 | – | 3.84 | 240 – 480 |
| 6 | 780 | – | 5.76 | 360 – 720 |
| 8 | 1005 | – | 7.68 | 480 – 960 |
| 9 | – | 780 | 8.64 | 540 – 1090 |
| 12 | – | 1005 | 11.5 | 730 – 1450 |
Applications
- Conveyor transfer points
- Material handling systems
- Enclosed conveyor systems
- Bulk material transfer
- Localised conveyor dust control
- Dust-generating transfer and discharge points
- Industrial processing facilities
- Integration with material handling equipment
Features & Benefits
Compact conveyor dust filtration
Designed for localised filtration close to conveyor and material transfer applications.
Multiple filter configurations
Available with 4, 6, 8, 9 or 12 filter bags to accommodate different airflow requirements. BPB Conveyor Vent Filters
Up to 11.5 m² filter area
Filter areas range from 3.84 m² through to 11.5 m² depending on the selected configuration. BPB Conveyor Vent Filters
Airflow up to 1,450 m³/h
Configurations are available with nominal airflow requirements ranging from 240 to 1,450 m³/h. BPB Conveyor Vent Filters
Matching fan options
BPBF fan options range from 0.37 kW to 2.2 kW, with maximum flow rates up to 1,450 m³/h. BPB Conveyor Vent Filters
Flexible system configuration
Filter and fan selection can be matched to the airflow and filtration requirements of the application.
