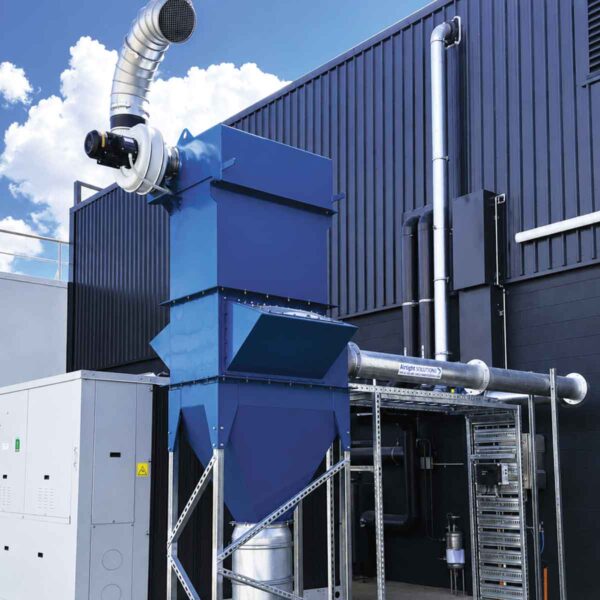

PJS Series Small Volume Pulse Jet Dust Collector
$0.00
The Airtight PJS Series Pulse Jet Dust Collector is a compact industrial dust extraction system designed for efficient collection and filtration of fine dust, powders and particulates.
Featuring automatic reverse-pulse cartridge cleaning, the PJS Series maintains effective filtration during operation while reducing manual filter cleaning requirements. With airflow capacities up to 4,500 m³/h, it is ideal for smaller dust extraction applications where space is limited and reliable filtration is required.
Suitable for indoor or outdoor installation, with filter media and optional combustible dust configurations available to suit the application.
- Description
- Specifications
- Downloads
Description
Compact Pulse Jet Dust Collection for Industrial Applications
The Airtight PJS Series Small Volume Pulse Jet Dust Collector provides efficient industrial dust extraction in a compact footprint. Designed for applications with lower air volumes, the PJS Series combines cartridge filtration with automatic reverse-pulse cleaning to provide reliable dust collection without requiring a large dust extraction system.
Available in three models with maximum airflow capacities from 2,600 to 4,500 m³/h, the PJS Series can be configured with filter media, fans and other options to suit the dust characteristics and requirements of the application.
Automatic Reverse-Pulse Filter Cleaning
The PJS Series uses a reverse-pulse cleaning system to remove accumulated dust from the filter cartridges during operation. Short pulses of compressed air clean the filter elements, helping maintain airflow and filtration performance while extending the usable life of the cartridges.
This online cleaning system makes the PJS Series particularly suited to applications requiring regular or continuous dust extraction.
Compact Cartridge Dust Collector
With a compact filter body, the PJS Series is well suited to facilities where floor space or installation height is limited.
Depending on the model, the collector uses six or nine cartridge filter elements, providing a large filtration area within a relatively small unit.
The system can be installed indoors or outdoors and can be configured to suit the specific dust being collected.
Typical ApplicationsThe PJS Series can be used for a wide range of fine dust,
|
PJS Series Features
|
PJS Series Models
The PJS Series is available in three sizes:

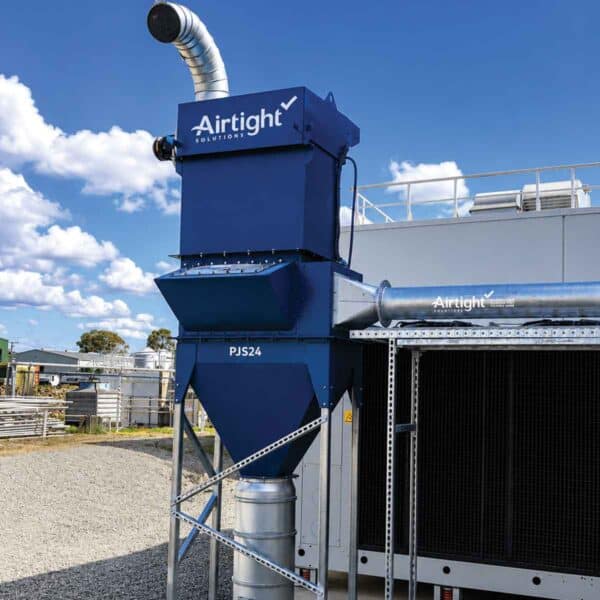

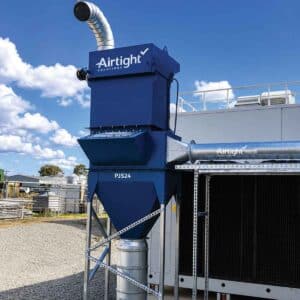

PJS24 – maximum airflow of 2,600 m³/h
PJS40 – maximum airflow of 3,600 m³/h
PJS60 – maximum airflow of 4,500 m³/h
Airtight Solutions can assess your dust type, airflow requirements, process and installation environment to recommend the appropriate dust collector, filter media and system configuration.
Need help selecting an industrial dust collector? Contact Airtight Solutions to discuss your dust extraction requirements and request a quote.
| MODEL | PJS24 | PJS40 | PJS60 |
| Capacity (max airflow m3/h) | 2600 | 3600 | 4500 |
| Filter cleaning method | Reverse pulse | Reverse pulse | Reverse pulse |
| Installation | Indoor, Outdoor | Indoor, Outdoor | Indoor, Outdoor |
| Suitable for combustible dust | Yes (optional extra) | Yes (optional extra) | Yes (optional extra) |
| Working pressure (kPa) | 2200 | 2200 | 2200 |
| Filter range/type | To suit application | To suit application | To suit application |
| Number of filter elements | 6 | 6 | 9 |
| Filter Body Dimensions (W x D) mm | 900 x 600 | 900 x 600 | 900 x 900 |
