Description

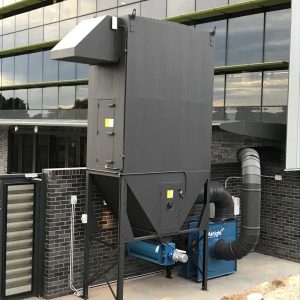

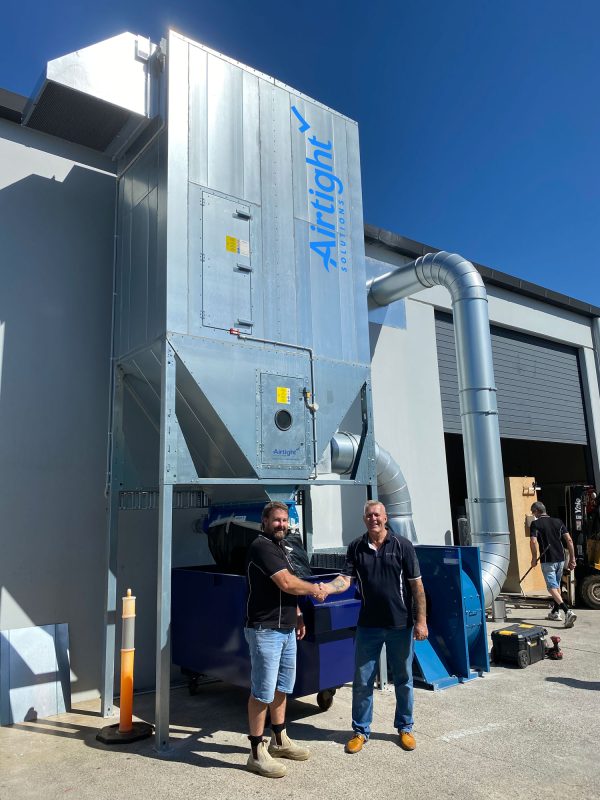

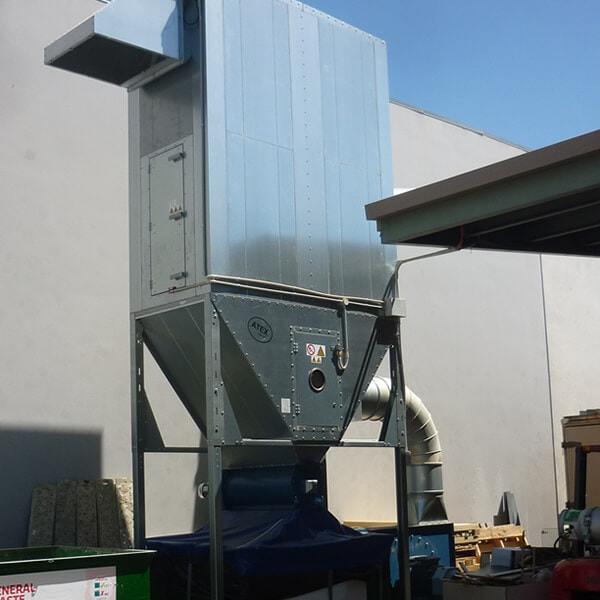

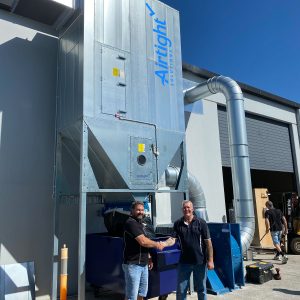

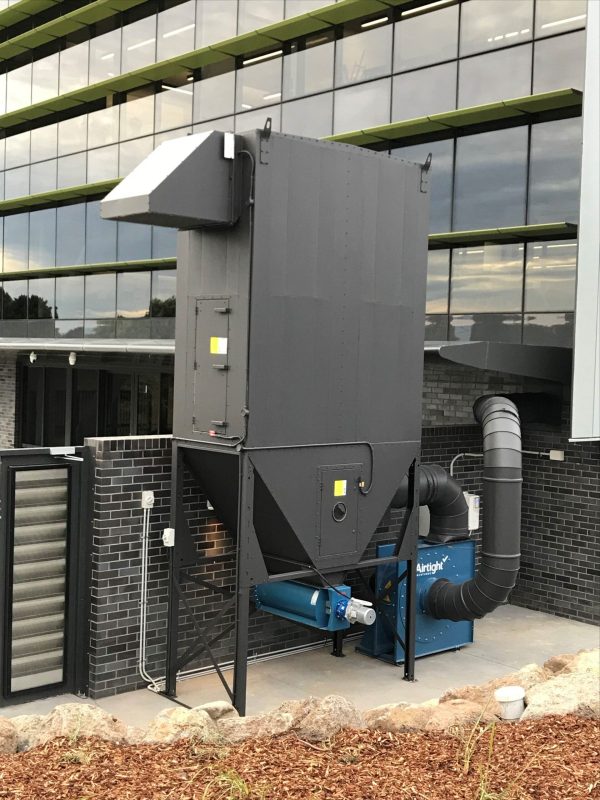

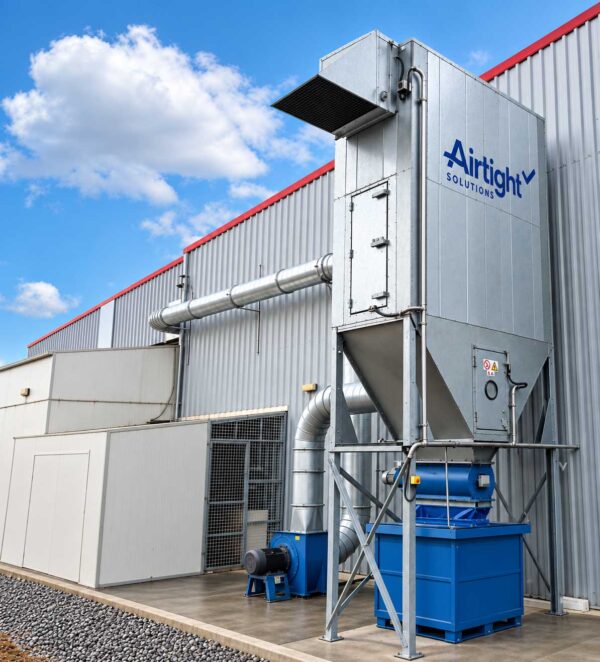

RAF-1M Reverse Airflow Dust Collector

The RAF-1M Reverse Airflow Dust Collector provides automatic filter cleaning for woodworking, timber processing and suitable industrial dust extraction applications.

As part of Airtight Solutions’ modular RAF-Series Dust Collectors, the RAF-1M uses reverse airflow to clean the filter bags during operation, helping maintain filtration performance without the regular shutdown periods associated with conventional mechanical shaker cleaning.

Its modular design also provides flexibility for businesses whose dust extraction requirements may change as production grows.

Automatic Reverse Air Filter Cleaning

The RAF-1M uses a reverse air cleaning system to remove accumulated dust from the filter media.

During cleaning, airflow is reversed through the filter bags to dislodge collected material, allowing it to fall into the discharge section below.

This cleaning process can occur while the dust extraction system continues operating, making reverse air filtration particularly useful for production environments where extended operating periods are required.

Continuous Dust Collection & Material Discharge

Dust collection doesn’t stop at filtration. Collected material also needs to be efficiently removed from the collector.

The RAF-Series can incorporate continuous material discharge, allowing collected dust and waste to be transferred from the filter into the site’s downstream collection or material handling system.

This makes the RAF-1M suitable for businesses looking for a more automated dust collection arrangement than smaller manually emptied systems.

Modular Dust Collection

One of the key advantages of the RAF-Series Dust Collectors is its modular construction.

The RAF-1M provides an entry point into the range for facilities requiring reverse-air filtration without immediately moving to the larger RAF configurations.

As production requirements change, the modular RAF design provides greater flexibility to accommodate increasing extraction requirements.

This can be particularly valuable for growing woodworking and manufacturing businesses where additional machinery may be added over time.

Woodworking & Timber Dust Extraction

The RAF-1M can form part of a centralised wood dust extraction system serving multiple pieces of production equipment.

Typical applications can include:

• Joineries and cabinet makers
• Furniture manufacturing
• Kitchen manufacturing
• Timber processing
• Wood product manufacturing
• CNC machinery
• Panel saws
• Edgebanders
• Suitable woodworking machinery
• Paper processing applications

The appropriate collector and system configuration should be determined by the dust characteristics, required airflow, machinery and number of extraction points operating simultaneously.

Need a Reverse Air Dust Collector?

Contact Airtight Solutions about your machinery, dust and airflow requirements. We can determine whether the RAF-1M Reverse Air Dust Collector is the right fit and design the wider extraction system around your operation.
