T1000 Woodworking Dust Collector
$0.00
The T-series dust collectors are the most powerful extraction system in the market of their size and are the leaders within it market segment. The T-series’ reputation and popularity is underpinned by its powerful, quiet and continuous performance. This system is the proven performer in countless timber, joinery, composite and other applications.
Optional extras available including:

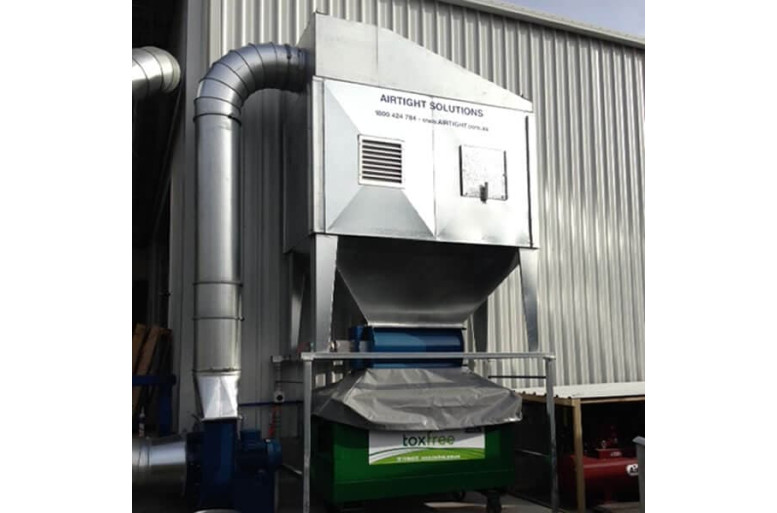

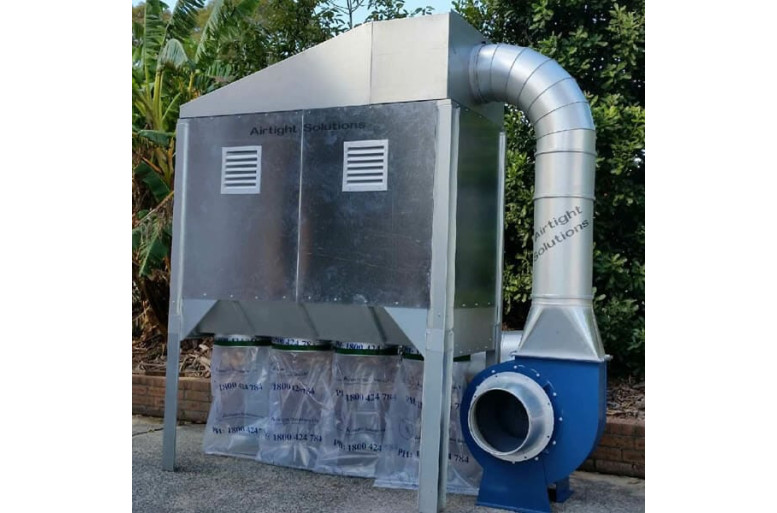

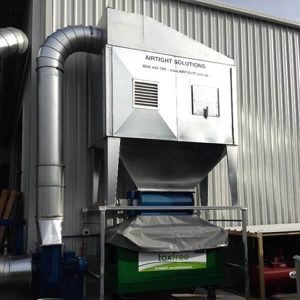

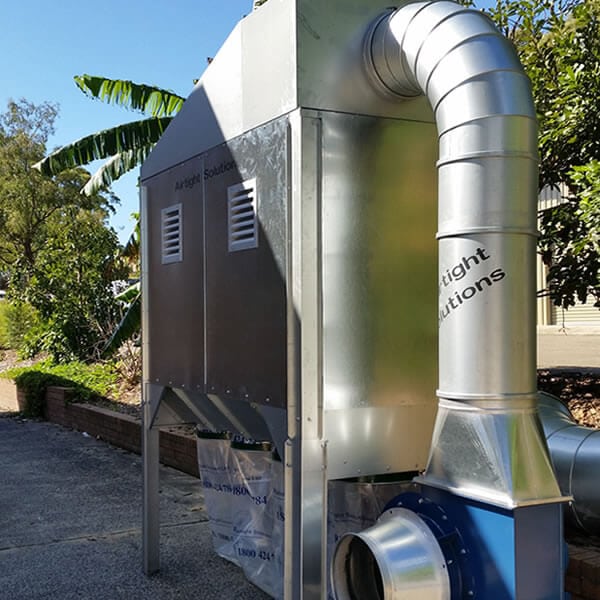

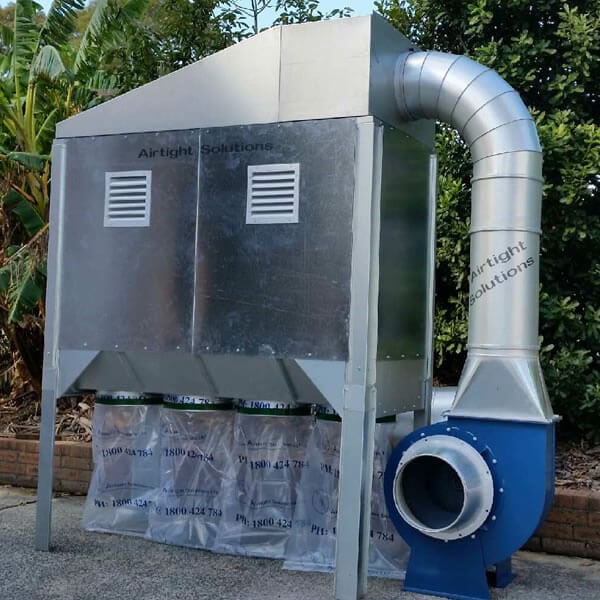

- Outdoor Kit
- Bin Kit

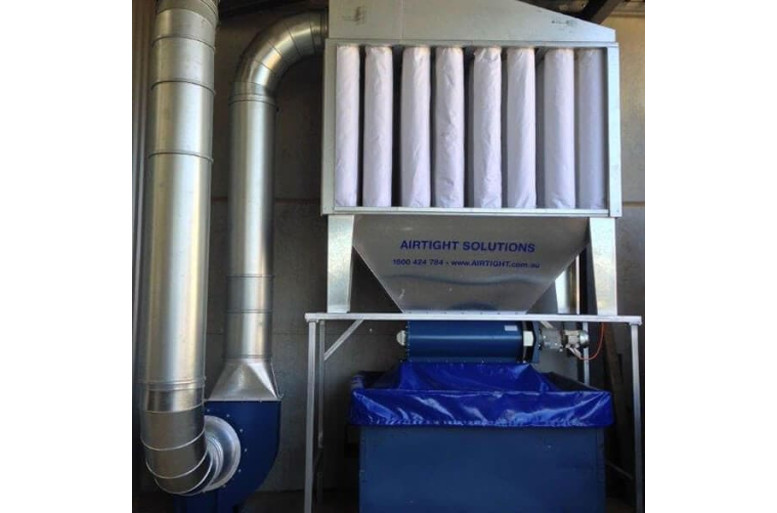

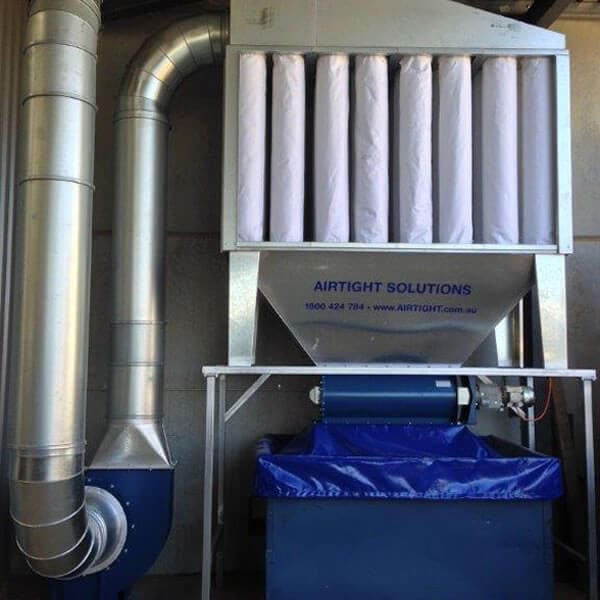

- Rotary valve kit
- Description
- Specifications
- T-Series Range
- Downloads
Description

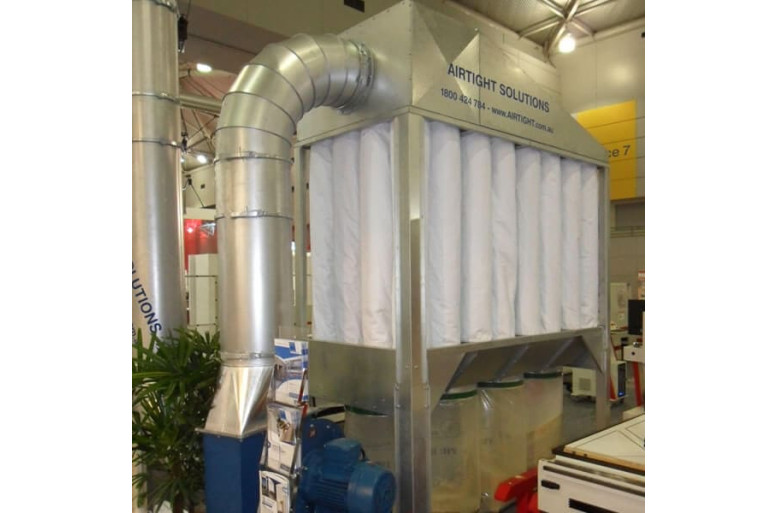

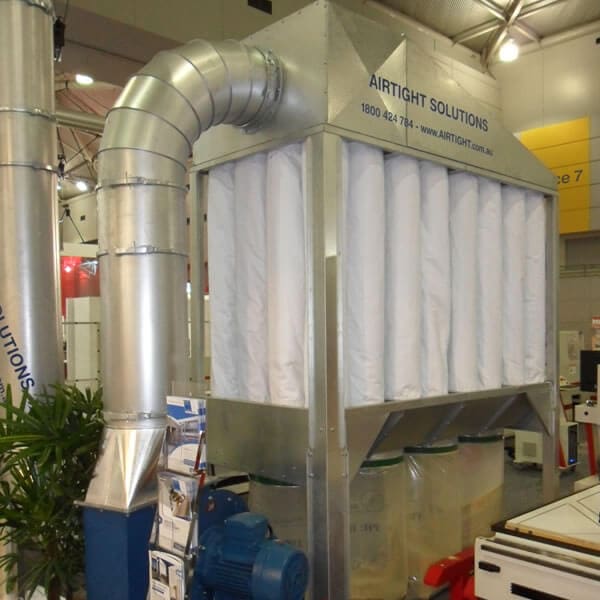

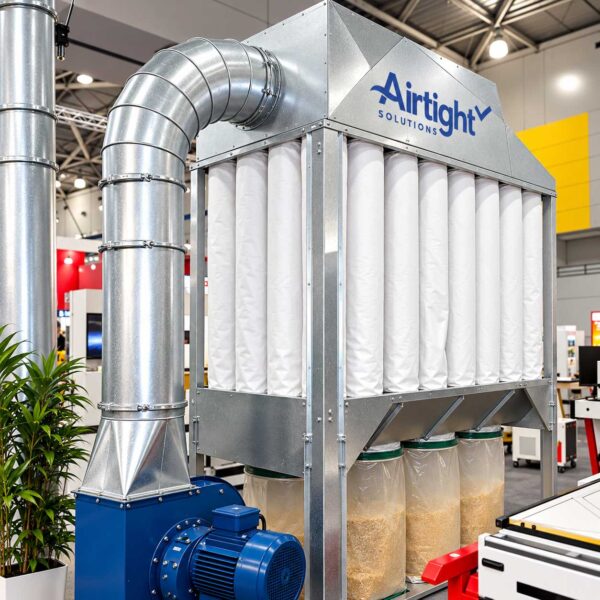

T1000 Woodworking Dust Collector
The T1000 Woodworking Dust Collector is the largest model in Airtight Solutions’ T-Series range, designed for joineries, cabinet makers and woodworking facilities requiring higher-capacity dust extraction across multiple machines.
With a typical capacity of 10,000 m³/h, the T1000 can provide extraction for multiple pieces of woodworking machinery, including CNC routers, edgebanders, panel saws, spindle moulders and other production equipment. For a typical joinery or cabinet-making application, this may equate to approximately 4–7 machines, depending on individual airflow requirements, dust loading and system pressure.
Continuous Dust Extraction Without Shaker Cleaning
The T-Series Dust Collectors use a top-entry design, with dust-laden air entering at the top of the baghouse before travelling down through the filter bags towards the collection area.
This constant downward airflow assists in keeping the filter bags clean and maintaining a low pressure drop, helping the T1000 maintain suction without requiring the downtime associated with conventional shaker cleaning.
For busy woodworking facilities operating several machines throughout the day, this provides a simple and reliable approach to continuous wood dust extraction.
High-Performance 11–15 kW Fan
The T1000 is available with an 11 or 15 kW high-efficiency materials handling fan, allowing the system to be specified around the airflow and extraction requirements of the facility.
The fan features a heavy-duty steel casing and self-cleaning backwards-inclined impeller designed for high-performance material handling applications. A Variable Speed Drive (VSD) allows fan operation to be controlled according to system requirements.
The appropriate motor and system configuration should be selected based on the machinery being extracted, required airflow, ducting layout and overall system pressure.
Designed for Multi-Machine Woodworking Facilities
The T1000 is particularly suited to larger woodworking operations where a centralised dust extraction system needs to service several machines.
Typical applications include:
- Joineries and cabinet-making facilities
- Kitchen manufacturing
- CNC routers
- Edgebanders
- Panel saws
- Spindle moulders
- Sanders with suitable membrane-coated filter bags
- Timber and wood processing
- Composite material processing
- Suitable plastics and chemical applications
Need Dust Extraction for Multiple Woodworking Machines?
Planning a new woodworking dust extraction system or need more capacity from your existing setup?
Talk to Airtight Solutions about your machinery, operating requirements and ducting layout. We can determine whether the T1000 Woodworking Dust Collector has the right capacity for your workshop and design the wider dust extraction system around your requirements.
| Model | AIRTIGHT T1000 11-15kw |
|---|---|
| Cleaning: | Constant bag flush |
| Capacity: | 10,000 m3/h @ 3,400 Pa |

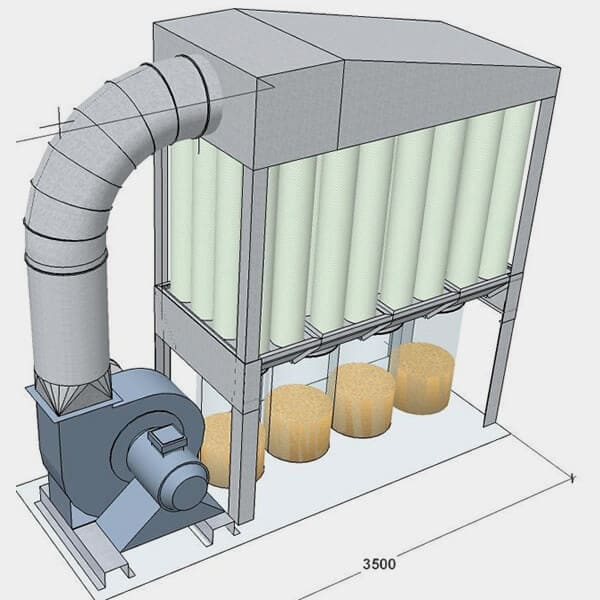

| Filter Area: | 32 x Needlefelt filter bags ~ 40m2 filter area (different setup/options available) |
| Fan: | High efficiency, materials handling fan, 5mm plate – powerful! Self cleaning Reverse incline impeller Inlet dia: 506mm |
| Motor: | High efficiency 11-15 kW, 2900 rpm |
| Variable Speed Drive: | 11-15kw Variable Speed Drive (control you power and energy |

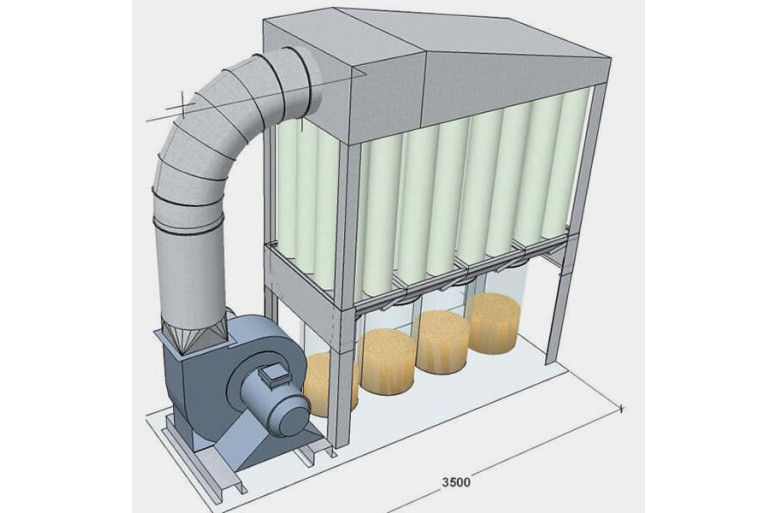

| Dimensions (mm): | ~1,300 (D) x 3,500 (W) x 3,420 (H) |
The T-Series dust collector systems are available in several sizes; from 2.2kW up to larger 15kW systems with variable speed drives and rotary valves.
T-Series range/models:
| Filters & Dimensions | Technical Parameters | |
|---|---|---|
| S200 |
|
|
| T500 |
|
|
| T750 |
|
|
| T1000 |
|
|
Download the T-Series brochure here
Contact your local Airtight Solutions team for more information and assistance on selecting the right dust collector for your application.
