Fishtail Manifold
$0.00
Designed to connect multiple extraction points into a common duct line, the Fishtail Manifold provides an efficient branching solution for industrial dust extraction and ventilation systems.
- Typically for edgebanders
- Traditional steel manifolds available for all edgeanders
Product Code example: FT8 (for 8 outlets)
- Description
- Applications
- Features & Benefits
Description

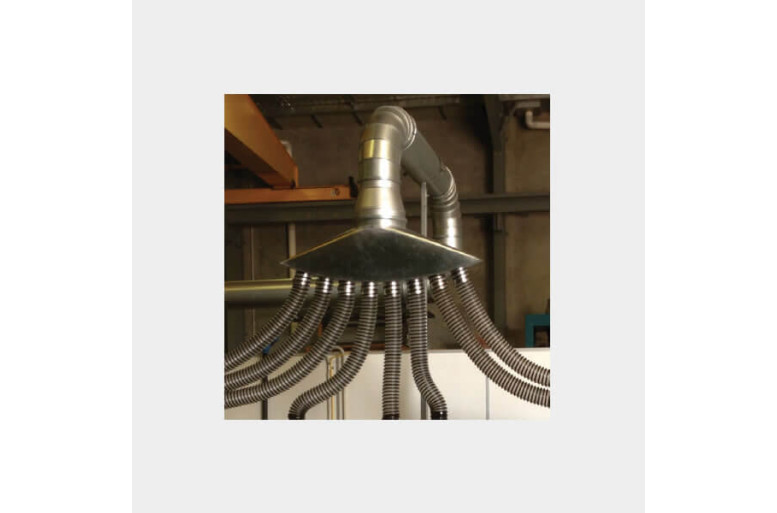

Fishtail Manifold
A Fishtail Manifold provides multiple branch connections from a common duct section, allowing several extraction points or duct runs to be brought together within an industrial dust extraction or ventilation system.
The angled branch arrangement provides a streamlined way to configure multiple duct connections while maintaining an organised ducting layout.
Fishtail manifolds can be manufactured to suit the requirements of the system, including the number of branches, duct diameters and overall configuration.
Connect Multiple Extraction Points
Industrial dust collectors and extraction systems often need to serve several machines, workstations or extraction points from a common main duct.
A duct manifold provides a central connection point for these individual duct runs, allowing multiple branches to connect into the wider extraction system.
This can be particularly useful in production areas where several pieces of equipment are positioned within the same area or where multiple extraction points are required along a process line.
Configured to Suit Your Ducting System
The required manifold configuration will depend on the number of extraction points, duct sizes, airflow requirements and overall system layout.
Different inlet and branch diameters can be accommodated depending on the application, allowing the manifold to be designed around the connected equipment and extraction requirements.
Correct sizing is important to ensure appropriate airflow and duct velocities are maintained throughout the system.
Part of a Complete Modular Ducting System
Airtight Solutions supplies a comprehensive range of modular ducting and fittings for dust collectors, fume extraction and industrial ventilation systems.
Our range includes straight duct, bends, branches, reducers, flexible ducting, suction hoods and other specialist fittings required to build or modify industrial ducting systems.
Whether you require an individual fitting or assistance designing a complete extraction system, Contact Airtight Solutions. We can assist you with system design, equipment supply, ducting and installation.
Applications
Fishtail manifolds are suited to industrial extraction systems where multiple extraction points or duct runs need to connect into a common duct section.
Common applications include:
- Dust extraction systems
- Process ventilation systems
- Multiple machine extraction
- Woodworking and joinery facilities
- Manufacturing and production lines
- Educational and training workshops
- Multiple workstation extraction
- Centralised dust collection systems
- Custom ducting layouts
- New installations and extraction system modifications
Features & Benefits
Multiple branch connections
Allows several extraction points or duct runs to connect through a common manifold.
Streamlined ducting layout
Provides an organised solution for bringing multiple branches together within an extraction system.
Custom configurations
Can be configured to suit different branch quantities, duct diameters and system layouts.
Supports multiple extraction points
Ideal for systems serving several machines, workstations or process extraction points.
Suitable for industrial extraction
Designed for integration into dust extraction and process ventilation systems.
Modular ducting integration
Can be incorporated alongside straight duct, bends, branches, reducers and other modular ducting components.
Suitable for new and existing systems
Can be specified for new installations or used when expanding and reconfiguring existing extraction ductwork.
