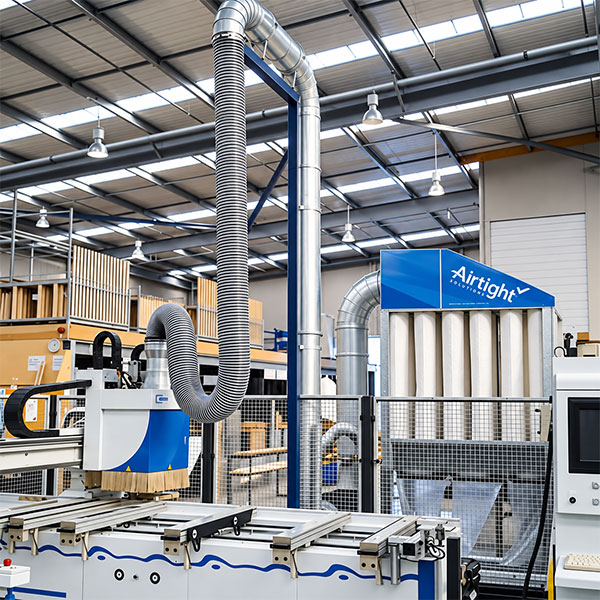

T750 Woodworking Dust Collector
$0.00
The T750 Woodworking Dust Collector provides industrial dust extraction for joineries, cabinet makers and woodworking facilities. Designed to capture wood dust and waste generated by woodworking machinery, the T750 provides a compact dust collection solution that can be integrated with ducting and multiple extraction points throughout the workshop.
Airtight’s T-series dust collectors are the most powerful extraction system in the market of their size and are the leaders within it market segment. The T-series’ reputation and popularity is underpinned by its powerful, quiet and continuous performance. This system is the proven performer in countless timber, joinery, composite and other applications.
Optional extras available including:
- Outdoor Kit
- Bin Kit
- Rotary valve kit
- Description
- Specifications
- T-Series Range
- Downloads
Description
T750 Woodworking Dust Collector

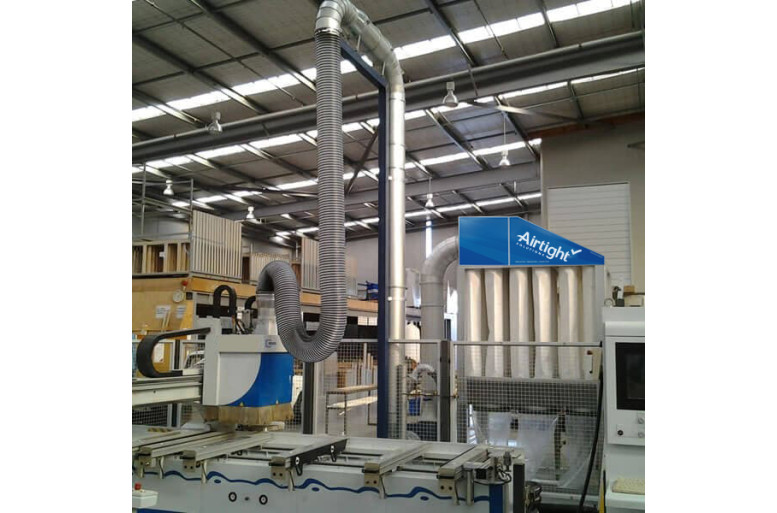

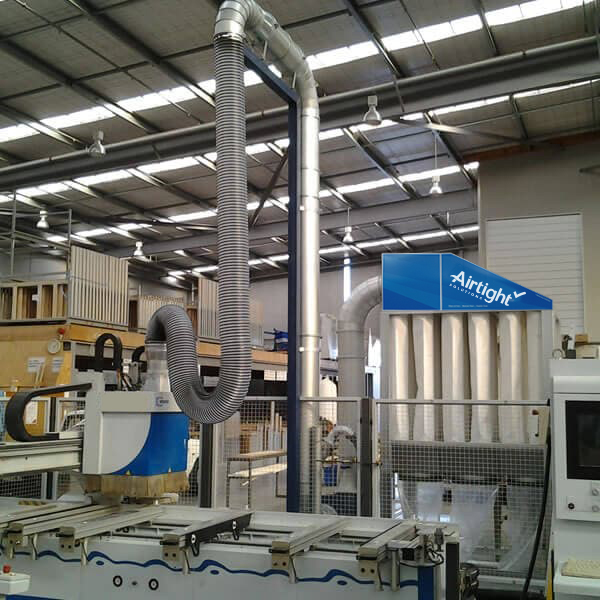

The T750 Woodworking Dust Collector is designed for workshops and manufacturing facilities generating wood dust, shavings and other waste from woodworking machinery.
Suitable for joineries, cabinet makers and timber processing applications, the T750 provides centralised dust collection that can connect to multiple machines through a properly designed ducting system.
By capturing wood dust at the machinery, an effective woodworking dust extraction system helps control airborne dust while also removing waste generated during production.
Dust Extraction for Woodworking Machinery
Woodworking operations can generate significant amounts of dust and waste during cutting, routing, sanding and machining.
Rather than relying on individual collection units at each machine, a centralised wood dust collector can connect multiple extraction points through a common ducting system.
The system can be designed around machinery such as:
- CNC routers
- Panel saws
- Table saws
- Sanders
- Thicknessers and planers
- Edge banders
- Other woodworking machinery
The required airflow and duct configuration will depend on the machinery being connected and how the workshop operates.
Designed for Joineries & Woodworking Facilities
An effective woodworking dust extraction system needs to account for more than the dust collector itself.
Machine extraction requirements, duct diameter, airflow, simultaneous machine use and workshop layout all influence system performance.
Airtight Solutions can design the complete system around the facility, incorporating the T750 dust collector, modular ducting, extraction connections and associated equipment required for the application.
This makes the T750 suitable for new woodworking dust extraction installations as well as upgrades to existing workshop systems.
Manage Wood Dust at the Source
Capturing wood dust close to where it is generated reduces the amount of material that can disperse into the wider workshop.
Correctly designed extraction also helps move wood waste away from machinery and into a central collection point for easier handling and disposal.
For facilities handling combustible wood dust, the wider system design should also consider the appropriate fire and explosion protection requirements for the application.
Complete Woodworking Dust Extraction Systems
Airtight Solutions can supply more than the dust collector. Our team can assess the machinery, workshop layout and extraction requirements to develop a complete wood dust extraction system, including the dust collector, ducting, extraction points and associated equipment.
Planning a new woodworking dust extraction system or upgrading your existing dust collector?
Contact our team for expert advice, a free onsite assessment, a customised solution, or a no-obligation quotation.
We are ready to help you find the right dust collection and air pollution control system for your business.
If using MDF please contact Airtight for filter recommendations.
The T-750 has a capacity of 7,500m3/hr dependent on dust type and dust loading. For a typical joinery/cabinet maker application this may equate to 2-4 machines.
| Model | AIRTIGHT T750 7.5kw |
|---|---|
| Cleaning | Constant bag flush |
| Capacity |
7,500 m3/h @ 2,800 Pa (3000rpm)
|
| Filter Area | 24 x Needlefelt filter bags ~ 23m2 filter area |
| Fan | High efficiency, materials handling fan, heavy duty plate – powerful! Self cleaning Reverse incline impeller Duct inlet: 315mm |
| Motor | High efficiency 7.5KW, 2980 rpm |
| Motor Starter | Motor Start/Stop Box included |

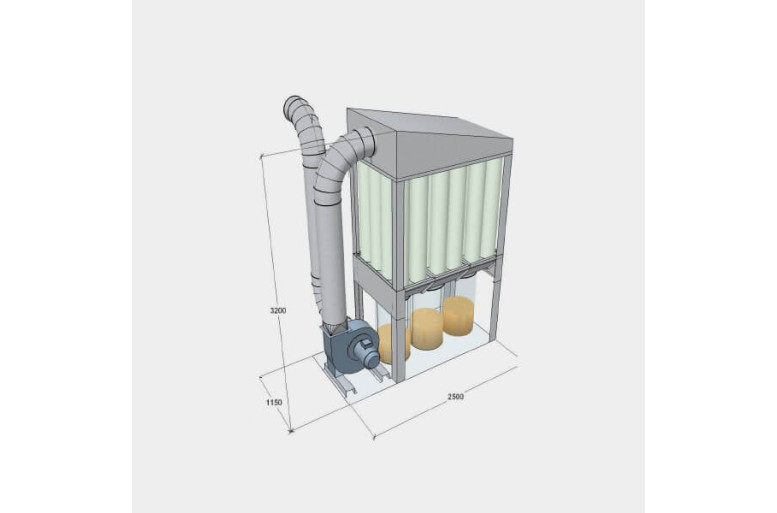

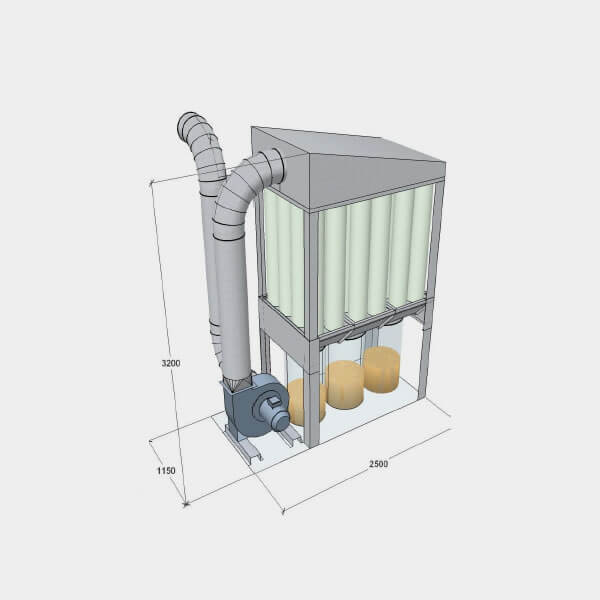

| Dimensions (mm) | ~1,270 (D) x 2,500 (W) x 3,420 (H) |
Contact our team for expert advice, a free onsite assessment, a customised solution, or a no-obligation quotation.
We are ready to help you find the right dust collection and air pollution control system for your business.
The T-Series dust collector systems are available in several sizes; from 2.2kW up to larger 15kW systems with variable speed drives and rotary valves.
T-Series range/models:
| Filters & Dimensions | Technical Parameters | |
|---|---|---|
| S200 |
|
|
| T500 |
|
|
| T750 |
|
|
| T1000 |
|
|
For data sheets please contact us at: sales@airtight.com.au
