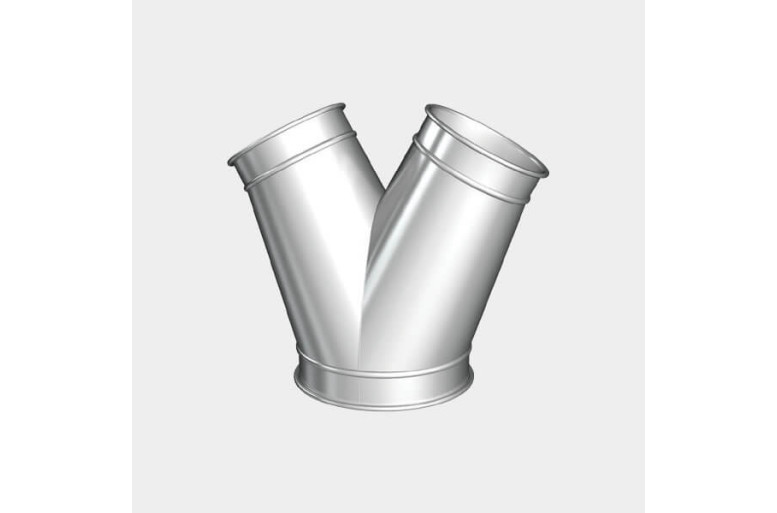

Y-Branch Piece
$0.00
Designed to connect two branch lines within industrial ducting, the Y Branch Duct Piece provides a streamlined connection for dust extraction and dust collection systems.
- Standard offet 30°
- Stock or made to order
Product Code: YB250, 160, 160
- Description
- Applications
- Features & Benefits
Description
Y-Branch Piece
Y Branch Ducting provides a streamlined way to connect multiple extraction lines within industrial dust extraction and dust collection systems.
The angled Y-Branch Piece allows separate duct runs to transition into a common main duct, helping connect multiple machines, workstations or extraction points to the wider system and dust collector.
Airtight Solutions’ Y-Branch Pieces feature a standard 30° offset and are available from stock or made to order to suit different duct sizes and system configurations.
Connect Multiple Extraction Lines
Industrial dust collectors often need to collect dust from multiple machines, workstations or extraction points.
A Y branch allows separate extraction lines to connect into a common duct run, providing an efficient way to bring multiple extraction points together within the wider dust collection system.
The angled configuration provides a gradual transition into the main duct, making it well suited to industrial extraction ductwork.
Designed for Dust Collection Ductwork
Y branches can be used throughout a ducting system to connect machinery and individual extraction points to larger main duct runs.
The appropriate branch and duct diameters should be selected according to the airflow requirements of the connected extraction points and the overall system design.
Airtight Solutions can supply standard configurations or made-to-order branch pieces to suit specific ducting layouts and system requirements.
Part of a Complete Modular Ducting System
Airtight Solutions supplies a comprehensive range of modular ducting and fittings for industrial dust extraction, dust collection, fume extraction and industrial ventilation systems.
Our range includes straight duct, bends, branches, reducers, flexible ducting, suction hoods and other specialist fittings required to connect individual extraction points through to the dust collector.
Whether you require an individual Y branch or assistance with a complete dust extraction system, Airtight Solutions can assist with system design, equipment selection, ducting and installation.
Applications
Y Branch Duct Pieces are suitable for industrial ducting systems where multiple extraction lines need to connect into a common duct run.
Common applications include:
- Dust extraction systems
- Dust collection systems
- Fume extraction systems
- Multiple machine extraction
- Woodworking and joinery machinery
- Manufacturing and production equipment
- Educational and training workshops
- Central dust collector connections
- Industrial ventilation systems
- New ducting installations and system modifications
Features & Benefits
Connects multiple duct lines
Provides a dedicated connection for bringing separate extraction lines together within a dust collection system.
Angled branch design
The angled configuration provides a gradual transition between branch lines and the main duct run.
Standard 30° offset
Airtight’s standard Y Branch Duct Piece features a 30° offset for integration into industrial ducting layouts.
Stock or made to order
Available in standard configurations or manufactured to suit specific duct sizes and system requirements.
Supports multiple extraction points
Ideal for dust extraction systems serving multiple machines, workstations or capture points.
Modular ducting integration
Can be incorporated alongside straight duct, bends, reducers, dampers and other modular ducting components.
Suitable for new and existing systems
Can be used when building a new dust collection system or modifying and extending existing ductwork.
