Branch Piece Ducting
$0.00
The Branch Piece duct provides an angled connection between a branch line and the main duct run in industrial dust extraction and dust collection systems. Ideal for connecting machinery, workstations and individual extraction points into the wider ducting system.

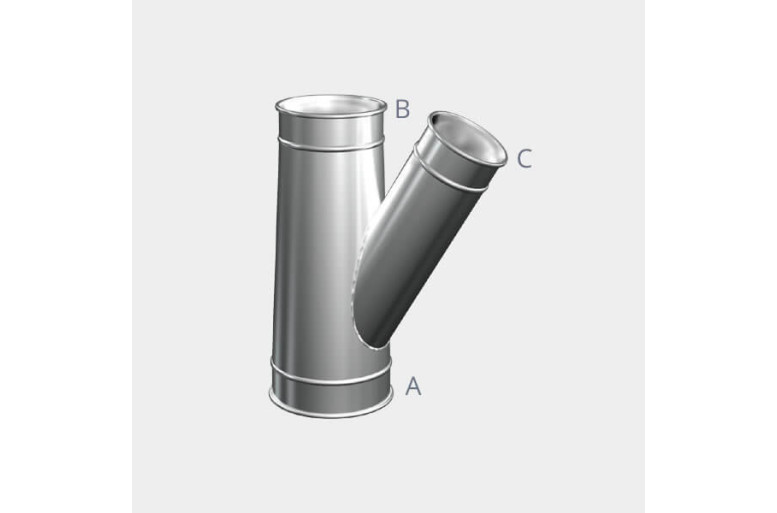

Product Code Example: BP250, 200, 125 (A, B, C)
- Description
- Applications
- Features & Benefits
Description
Branch Piece Ducting
The Branch Piece duct provides an angled connection between a branch line and the main duct run within industrial dust extraction and dust collector systems.
Branches are commonly used to connect individual machines, workstations or extraction points into the larger network leading towards the dust collector.
The angled design provides a gradual transition into the main duct, making it suitable for building efficient industrial extraction layouts.
Connect Extraction Points to the Main Duct
Dust extraction systems often require multiple extraction points to be connected to a central dust collector.
A Branch provides the connection between an individual extraction line and the main duct run, allowing dust-laden air to be transported from the source towards the collection equipment.
Branch pieces can be incorporated throughout the system as additional machines or extraction points are connected.
Branch Ducting Designed for Dust Extraction
Branch configuration and duct diameter should be selected according to the airflow requirements of the extraction point and the overall system design.
Correct sizing and system layout are important when connecting multiple branches to a common dust collector, as each additional extraction point contributes to the airflow requirements of the complete system.
Airtight Solutions can assist with selecting suitable ducting components as part of a new dust extraction system or when modifying an existing installation.
Part of a Complete Modular Ducting System
Airtight Solutions supplies a comprehensive range of modular ducting and fittings for dust extractors, fume extraction and ventilation applications.
The range includes straight duct, bends, reducers, flexible ducting, suction hoods and specialist fittings for connecting equipment throughout an industrial extraction system.
Whether you require an individual branch fitting or a complete dust extraction system, Airtight Solutions part of The Environmental Group can assist with ducting, equipment selection, system design and installation.
Applications
- Industrial dust extraction systems
- Dust collection systems
- Machine and equipment extraction
- Connecting branch lines to main ductwork
- Woodworking and joinery workshops
- Manufacturing and production facilities
- Educational and training workshops
- Fume extraction systems
- Industrial ventilation systems
- New ducting installations and system extensions
Features & Benefits
Connects branch and main ductwork
Provides an angled connection for joining individual extraction lines to the main duct run.
Supports multiple extraction points
Ideal for systems where several machines, workstations or capture points connect to a central dust collector.
Angled branch design
Provides a gradual transition from the branch line into the main ductwork.
Flexible system configuration
Can be incorporated at different points throughout the ducting layout to suit machinery and extraction requirements.
Suitable for industrial extraction
Designed for use across dust extraction, dust collection, fume extraction and industrial ventilation applications.
Modular ducting integration
Integrates with straight duct, bends, reducers, dampers and other modular ducting components.
Suitable for new and existing systems
Can be used when building a new extraction system or extending and reconfiguring existing ductwork.
